How to cut foam board​?

HYHeva | 2025-05-22

Guide to Cutting Foam Boards

Table of Contents

Introduction to EVA Foam

EVA foam, or Ethylene-Vinyl Acetate foam, is a versatile material widely used in various industries due to its excellent properties. If you're curious about the basics of EVA foam, you can check out our previous blog What is EVA Foam for a detailed introduction. It is known for its durability, flexibility, and shock-absorbing capabilities, making it ideal for applications ranging from footwear and sports equipment to packaging and insulation. However, to utilize EVA foam effectively, learning how to cut foam board precisely is crucial.

Essential Tools for Cutting EVA Foam

Cutting EVA foam requires the right set of tools to ensure clean and accurate cuts. Here are some essential tools you'll need:

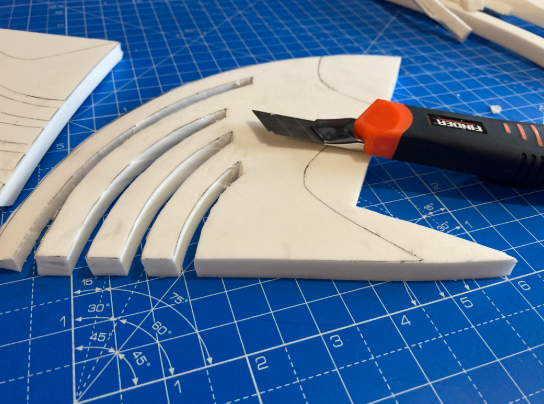

  • Craft Knife: A sharp craft knife is a must-have for cutting EVA foam. It allows for precise cuts and can handle various thicknesses of the foam.
  • Scissors: For larger cuts or when you need to cut through multiple layers of EVA foam, a pair of sharp scissors can be very useful.
  • Hot Wire Cutter: This tool is particularly effective for cutting thicker EVA foam sheets. The heated wire melts through the foam, creating a smooth cut.
  • Ruler and Pencil: To mark your cutting lines accurately, a ruler and pencil are essential. This ensures that your cuts are straight and follow your desired shape.

Step-by-Step Guide to Cutting EVA Foam

Now that you have the necessary tools, here's a step-by-step guide on how to cut foam board made of EVA foam:
  1. Prepare Your Workspace: Clear a flat, stable surface to work on. Ensure that the area is well-lit so you can see your cutting lines clearly.
  1. Mark Your Cutting Lines: Use a ruler and pencil to mark the desired shape or size on the EVA foam sheet. Take your time to ensure accuracy.
  1. Choose Your Cutting Tool: Depending on the thickness and complexity of your cut, select the appropriate cutting tool. For thin sheets and intricate shapes, a craft knife is a good choice. For thicker sheets, a hot wire cutter may be more suitable.
  1. Make Your Cuts: Slowly and steadily cut along the marked lines. If using a craft knife, apply gentle pressure and make multiple passes if necessary to ensure a clean cut. If using a hot wire cutter, move the wire slowly through the foam to avoid melting too much material.
  1. Smooth the Edges: After cutting, you may notice some rough edges. You can use sandpaper or a file to smooth them out for a professional finish.

Comparison between EVA Foam and EPE Foam

Both EVA foam and EPE foam (Expanded Polyethylene foam) are popular choices in the foam industry, but they have distinct differences.

Advantages of EVA Foam:

  • Superior Flexibility: EVA foam offers excellent flexibility, allowing it to conform to various shapes easily. This makes it suitable for applications where flexibility is key, such as in footwear insoles.
  • Better Tear Resistance: It has higher tear resistance compared to EPE foam, making it more durable in applications where the foam may be subjected to stress or pulling forces.
  • Adhesive Compatibility: EVA foam adheres well to a wide range of materials, making it convenient for bonding and assembly processes.

Advantages of EPE Foam:

  • Lower Cost: EPE foam is generally more affordable than EVA foam, making it a cost-effective option for large-scale applications.
  • Higher Compression Resistance: It has better compression resistance, which means it can withstand heavier loads without deforming easily. This makes it ideal for packaging applications that require support and protection.
  • Water Resistance: EPE foam has good water resistance properties, making it suitable for outdoor or wet environment applications.

General Parameters of EVA Foam

The following is a general parameter table for EVA foam, which can help you better understand its characteristics:
Parameter
Description
Density
Typically ranges from 30 - 300 kg/m³, with higher density indicating a firmer foam.
Tensile Strength
Usually between 1 - 25 MPa, depending on the specific formulation and density.
Elongation at Break
Can range from 100% - 800%, showing its excellent stretchability.
Thermal Conductivity
Low, usually around 0.03 - 0.05 W/(m·K), providing good insulation properties.
Operating Temperature Range
Generally -50°C to 80°C, although this can vary based on the composition of the EVA foam.

Expert Insights on Cutting EVA Foam

According to Stephen Lincoln, a renowned expert in the foam industry, "When cutting EVA foam, it's important to consider the thickness and hardness of the material. For thinner and softer EVA foam, a sharp craft knife can work wonders, but for thicker and more rigid sheets, a hot wire cutter is the preferred choice. Additionally, always ensure that your cutting tools are clean and sharp to avoid ragged edges and uneven cuts."

Frequently Asked Questions

Q: Can I cut EVA foam with a regular pair of household scissors?
A: While it's possible to cut thin EVA foam sheets with sharp household scissors, for thicker or more precise cuts, it's recommended to use specialized cutting tools like a craft knife or hot wire cutter.
Q: Does the cutting method affect the performance of EVA foam?
A: Yes, improper cutting can damage the structure of the EVA foam, potentially reducing its performance in terms of flexibility, shock absorption, and durability. Using the right tools and techniques is crucial to maintain the foam's integrity.
Q: Is EVA foam more environmentally friendly than EPE foam?
A: EVA foam is generally considered more environmentally friendly as it is made from non-toxic materials and is often recyclable. However, the environmental impact also depends on the manufacturing process and disposal methods of both materials.
